Full-Range Vacuum Guage
$180.00

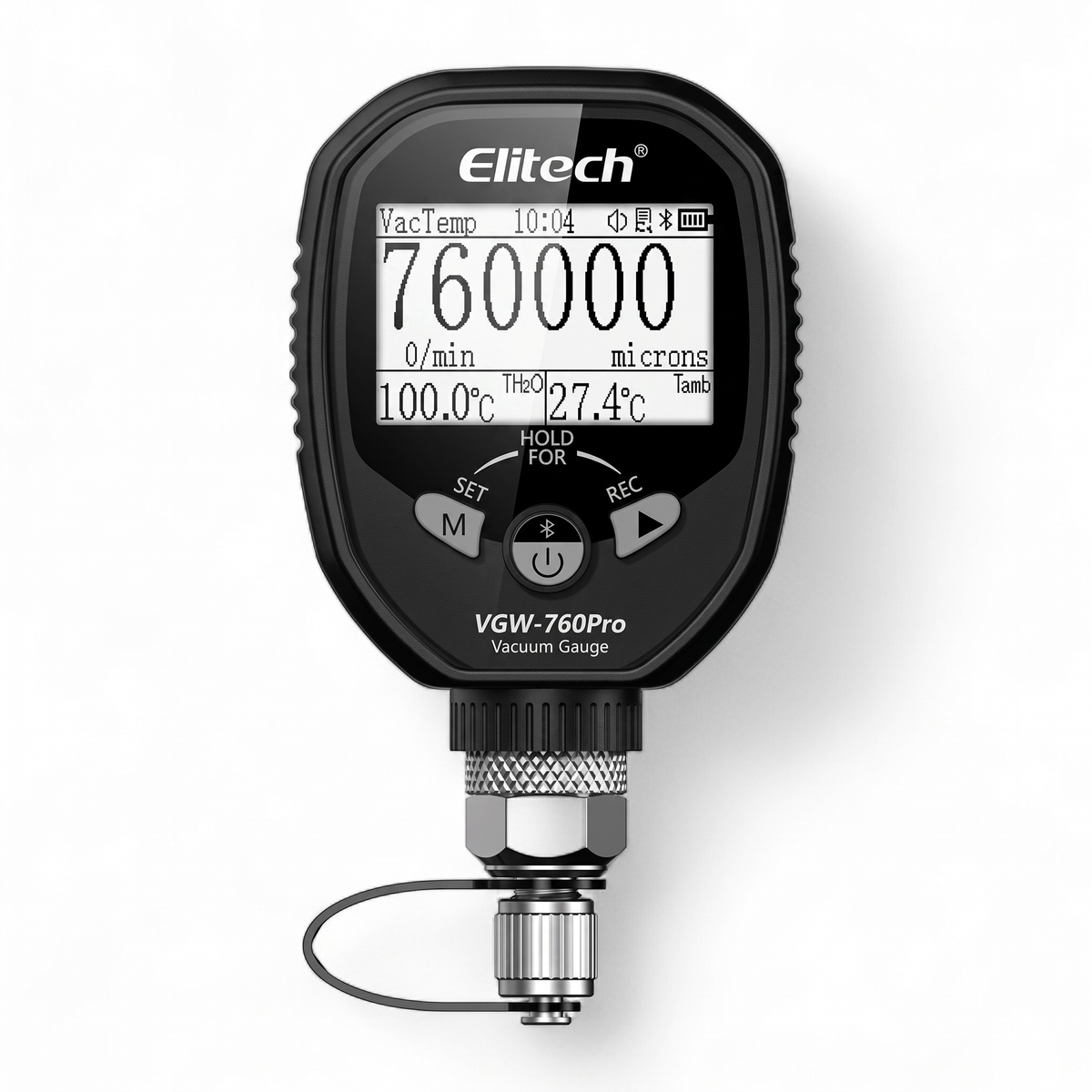

Full-Range Vacuum Guage VGW-760Pro is a full-range wireless digital micron gauge. It distinguishes itself by measuring all the way from atmospheric pressure down to 1 micron (0 to 760,000 microns), allowing technicians to track the entire dehydration process without swapping tools.
| Parameter | Specification Details |
|---|---|
| Measuring Range | 1 to 760,000 microns |
| Accuracy | ±10% of reading ±10 microns (at 25°C) |
| Fitting Connection | 1/4" SAE Male Flare |
| Maximum Overpressure | 27.5 bar (approx. 400 PSI) |
| Supported Units | Microns, Torr, mbar, Pa, psia, kPa, inHg, mTorr |
| Power Supply | 3 x 1.5V AA batteries (up to 120-hour low-power battery life) |
| Environmental Protection | IP65 rated dust and water resistance |
