Goodman Condenser Motor ECM
$560.00

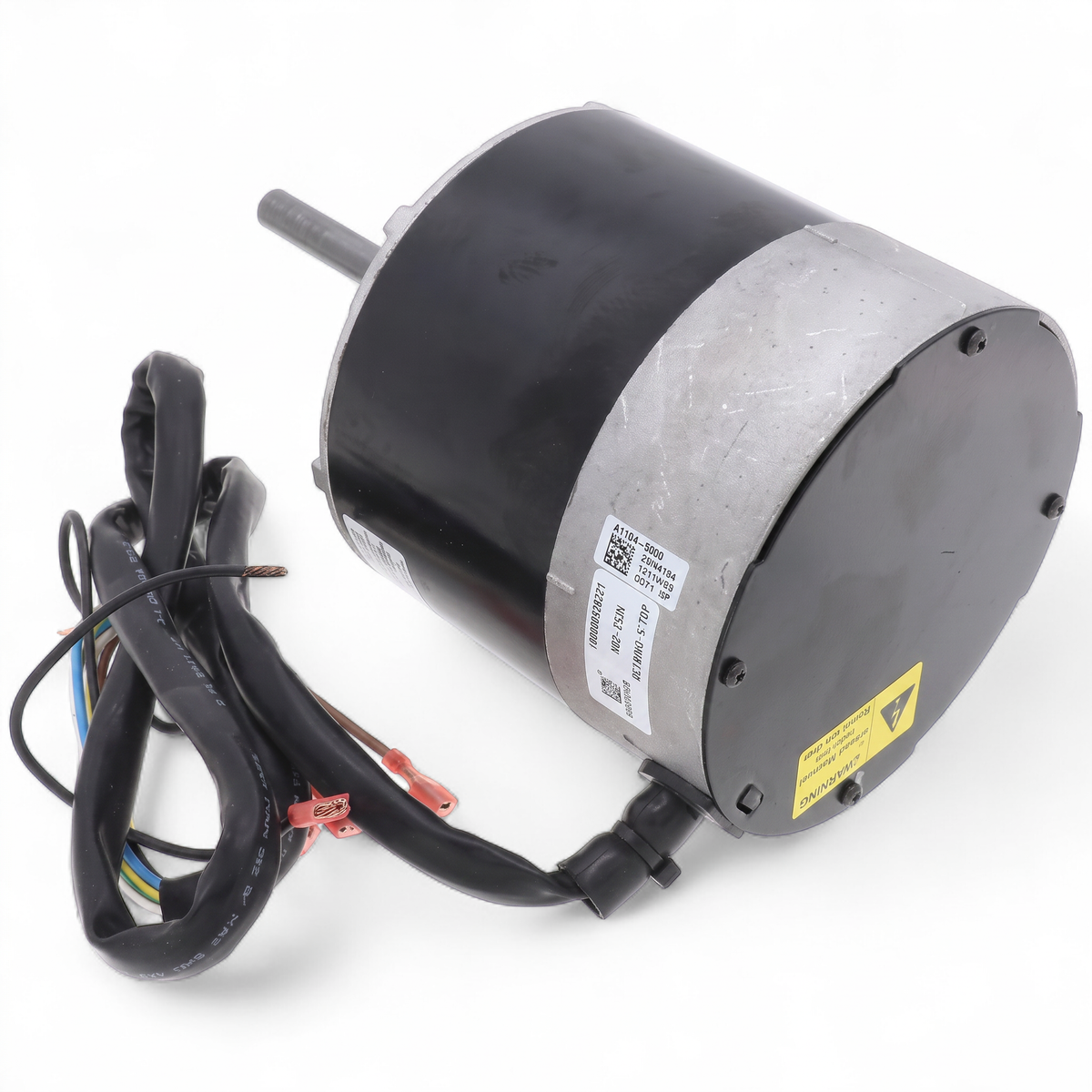

Condenser Motor ECM Goodman (0131M00401SP) is a genuine, (OEM) electronically commutated motor (ECM) condenser fan motor primarily used in high-efficiency Goodman, Amana, Daikin residential HVAC systems.
- Power Rating: 1/3 Horsepower (HP)
- Electrical Rating: 208-230 Volts, 1-Phase, 50/60 Hz
- Current Draw: 2.4 - 2.6 Amps
- Motor Type: Fixed Speed / Variable Speed ECM
- Rotational Speeds: Dual-speed operation (High: 1050 RPM / Low: 750 RPM)
- Rotation Direction: Clockwise from the lead end (CWLE)
- Physical Dimensions: 5.5-inch outer frame diameter, 1/2-inch shaft diameter, and a 3-3/4-inch shaft length.
