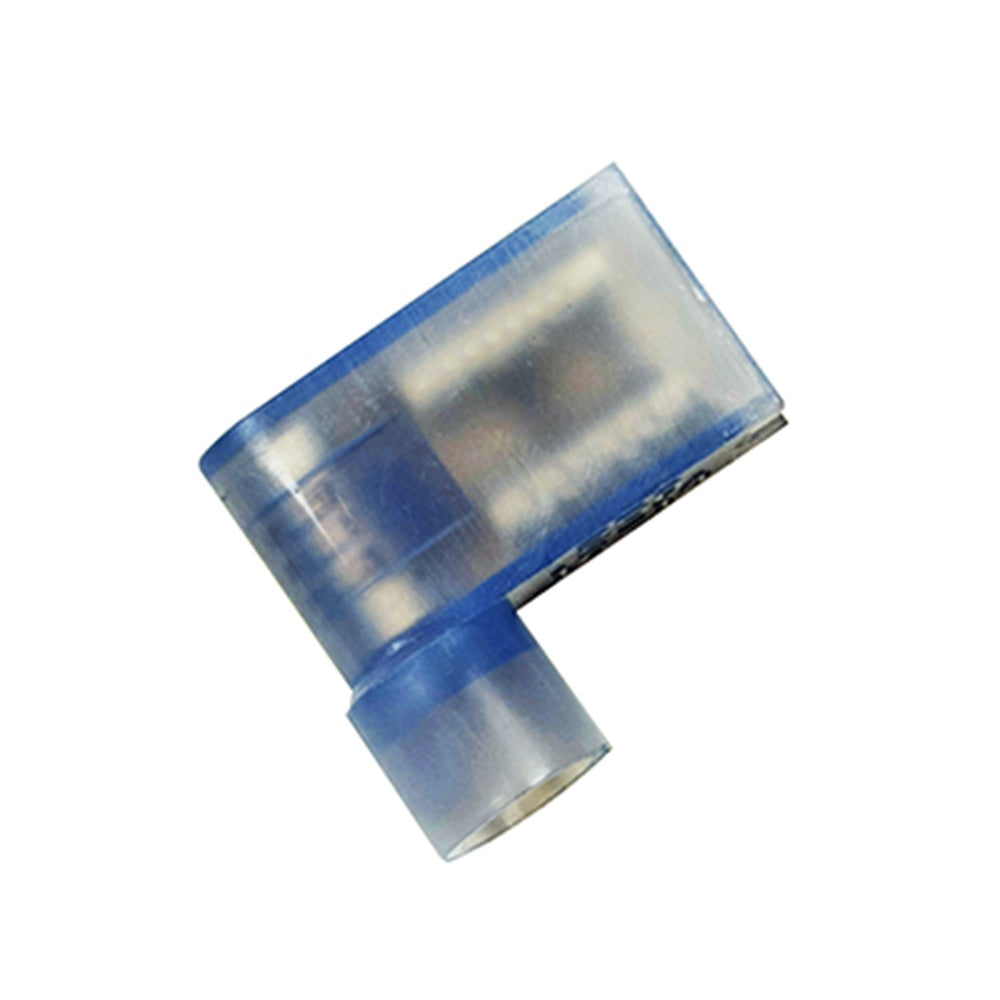

Female Flag Disconnects PP-NBF-FI-250
$12.00
16-14 NYL FI DISC FLAG .250
- Insulation: Fully insulated nylon, color-coded blue for 16-14 AWG wire.
- Wire Gauge Range: 16 AWG - 14 AWG.
- Tab Size: Accepts a male terminal with a width of 0.250" (1/4 inch) and a thickness of 0.032".
- Design: Features a 90-degree (flag) orientation for use in confined spaces.
- Voltage Rating: 600V max for building wire, 1000V max for signs and fixtures.
- Temperature Rating: Rated for continuous operation up to 105°C (221°F).
- Material: Constructed of annealed, electrolytic (ETP) copper with tin plating for excellent conductivity and corrosion resistance
