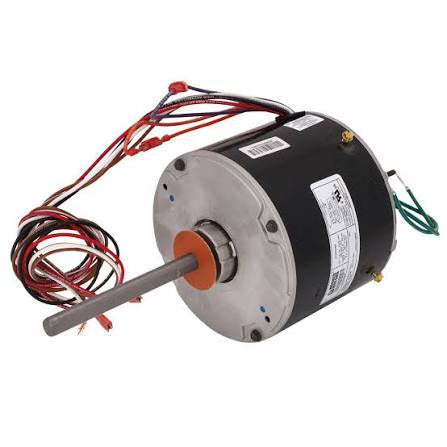

Condenser Fan Motor 1/3, 1/4, 1/5, 1/6hp 825rpm
$150.00
Condenser Fan Motor 1/3, 1/4, 1/5, 1/6hp 825rpm is a universal multi-horsepower condenser fan motor designed to replace a wide range of HVAC outdoor fan motors.
- Horsepower Range: 1/3, 1/4, 1/5, 1/6 HP (Multi-HP design covers all four ratings)
- Speed: 825 RPM (2-Speed motor)
- Voltage: 208-230 V AC, Single Phase, 60 Hz
- Full Load Amperage (FLA): 2.1A (1/3 HP), 1.7A (1/4 HP), 1.5A (1/5 HP), 1.2A (1/6 HP)
- Rotation: Electrically reversible (CW/CCW via reversing plugs)
- Frame Size: NEMA 48
- Shaft Size: 1/2 inch diameter by 5 inches long
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearings: Ball bearings for high heat endurance.
- Universal Application: Replaces many OEM condenser fan motors, eliminating the need to carry multiple single-horsepower motors.
- Easy Installation: Equipped with extended thru-bolts and a standard 48-frame design compatible with standard belly bands and mounting brackets.
